AVAILABLE IN STORE APPROX MID NOVEMBER
This Broadhead will initially be available in 125gn and 225gn wieghts. 100grain and 150 grain, along with double bevel version to come in early 2018.

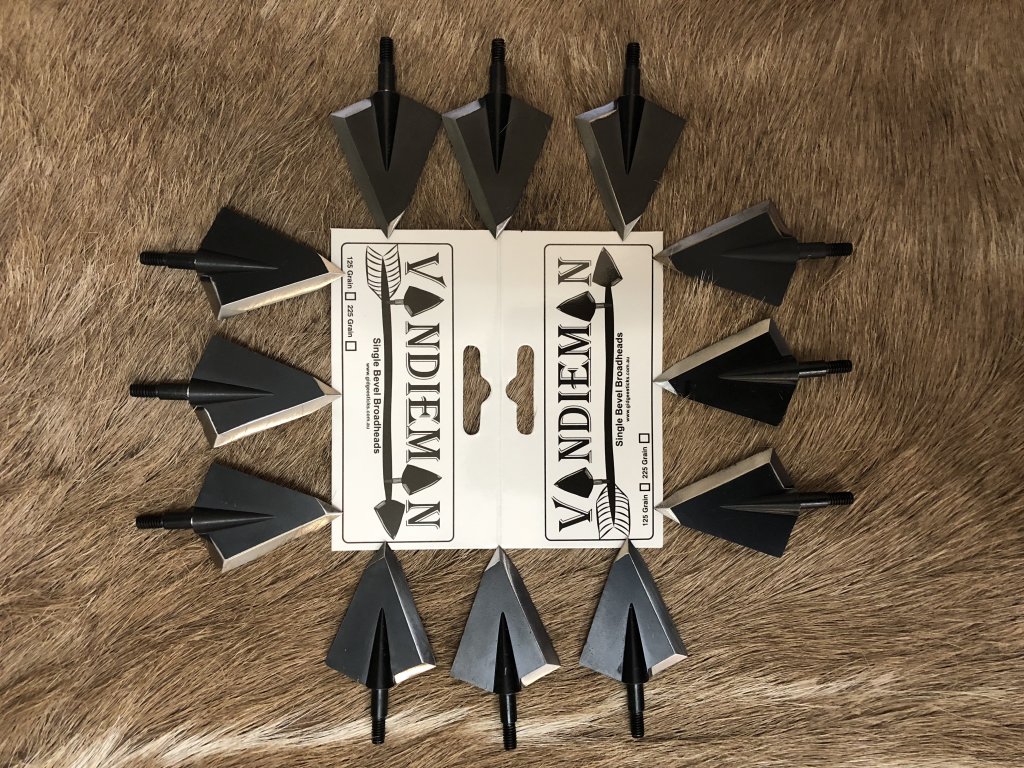

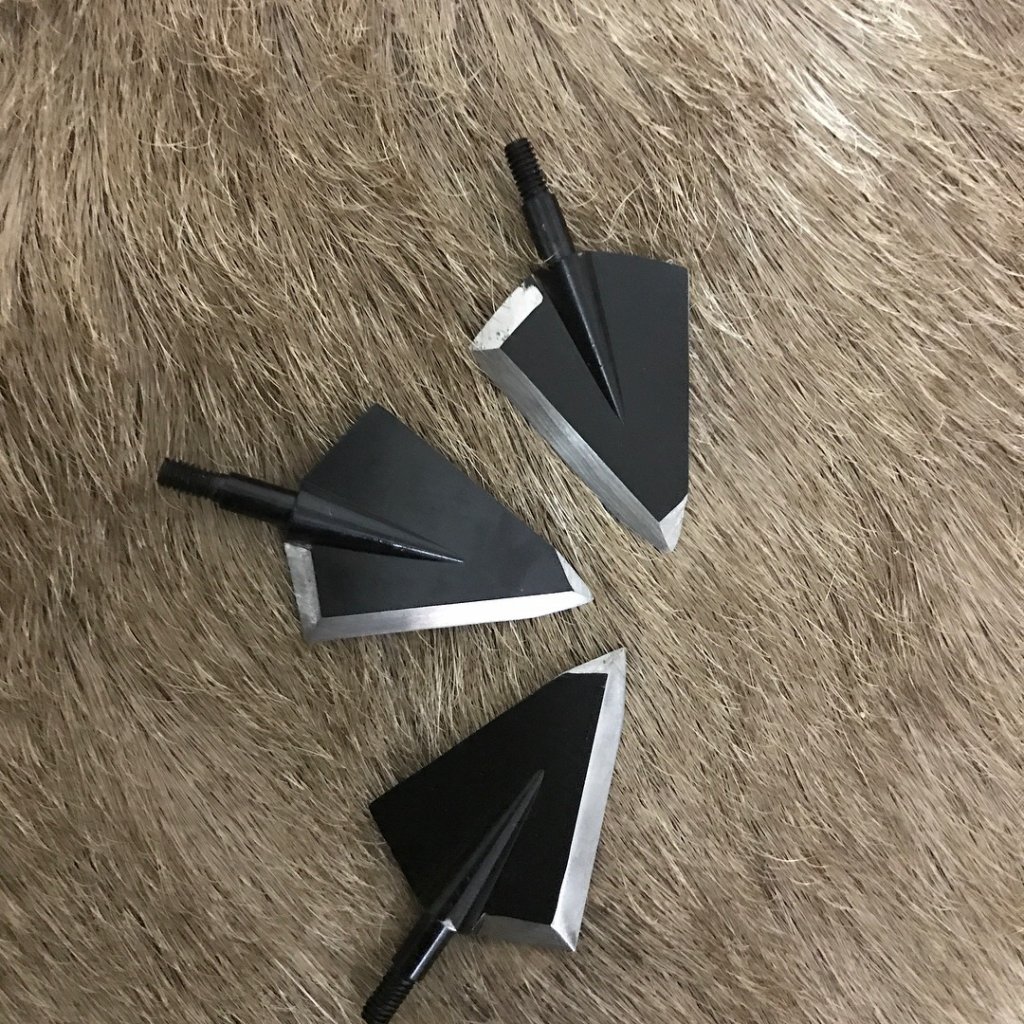

The Van Dieman is a Solid Cast Single Bevel Design
No Screws or adjustable blades ensures a blade that spins perfectly and flies right every time, straight out of the packet.
Heat Treated to a Hardness ranging between 44 & 46 Rockwell. Solid Enough to get the job done, soft enough to easily sharpen to a razor sharp Edge.
The 125 Grain Has a 28mm (1 1/9") Cutting Diameter and a 1.5mm thick blade.
The 225 Grain has a 33mm (11/4")cutting Diameter and a whopping
2mm thickblade, one of the thickest available in Australia. The thick Single Bevel has been designed at a 25 degree angle, this assists to improve arrow flight and force continued arrow rotation as it passes through your target.
Designed to give what we believe to be the best attainable combination of Blade Width and Angle of Attack to deliver devestating affects on the internal organs of your intended target.
Maintenance: The VanDieman Single Bevel Broadheads are made from Black steel which is suceptible to rust, while the black lamination is designed to protect the metal, the exposed sharpened parts need to be protected. This can be achieved by applying a permanent marker to all exposed metal, some other options are to apply Bowstring wax or Lanolin to these surfaces.
Sharpening - A razor sharp edge can easily be achieved with a Sharpening stone and a Steel.
Our preferred method is to work the bevelled edge first until we can feel a small Burr the full length of the flat side of the blade. Then take the burr off the blade by alternately working the flat and the bevelled sides until we achieve the desired affect, Then we give the Broadhead a touch up with the steel. After sharpening, coat the exposed edges as discussed above to protect the metal from the elements.
Van Dieman Single Bevel Broadhead
Cutting Edge "BRAVO" Broadhead 3 pack
- TANTO POINT
- SINGLE BEVEL
- SOLID CNC CONSTRUCTION
- MILITARY GRADE "BLACK OXIDE" CONVERSION COATING
- PACK OF 3
- MADE IN AUSTRALIA
Machined from a single piece of shock resistant, tool grade steel, our broadheads present a high quality and cost effective solution for all Bowhunters Australia wide and across the globe.
At 42-45RC, the Cutting Edge "BRAVO" & "STRYKER" Single bevel broadhead is the toughest and best valued CNC machined BIG GAME broadhead available.
Superior penetration and mechanical advantage on tough, Australian game species.
Have the confidence to take on any shot knowing that this broadhead will split bone and pass through the vitals of your target, Confidence where it matters most.
